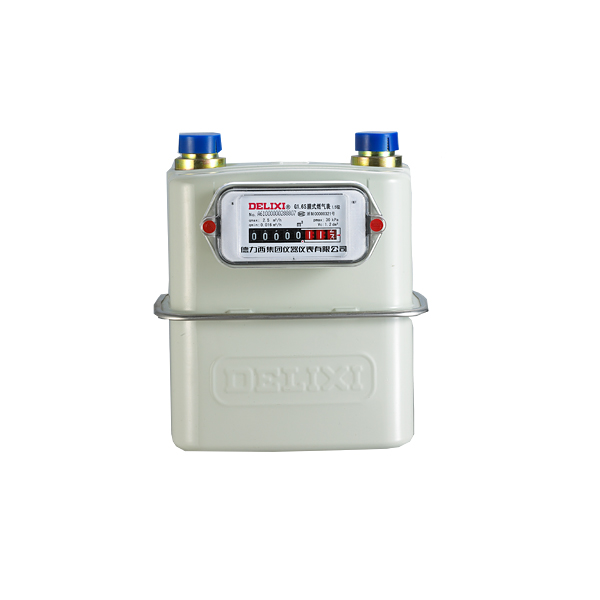

G1.6s, g2.5s, G4S(Steel Case) Gas Meters
are type of displacement gas volume meters, which are applicable to meter the
flow rate of combustion gases like natural gas, liquefied petroleum gas (LPG),
marsh gas and coal gas, and their technical performance complies with the
specification of Grade 1.5 in GB/T 6968-2011 Diaphragm Gas Meters.
Independent rotary slide valve, high precision; High quality rubber film and rubber seal are adopted to ensure high sensitivity and reliability. The whole machine is protected by static electricity spraying and has strong anti-corrosion ability. The protective case is connected with a complete stainless steel shell clamping and sealing. Table joints are connected by riveting, with high strength and good sealing.
|

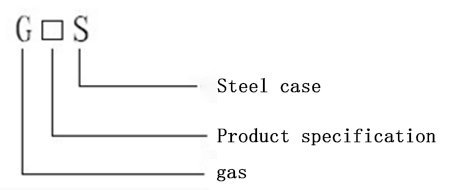

Type & specification
/Technical data
|
G1.6S
|
G2.5S
|
G4S
|
|
Max. flow rate （m3/h）
|
2.5
|
4
|
6
|
|
Min. flow rate（m3/h）
|
0.016
|
0.025
|
0.04
|
|
Overload flow rate（m3/h）
|
3.0
|
4.8
|
7.2
|
|
Startup flow rate （dm3/h）
|
3
|
5
|
|
Max. operating pressure（kPa）
|
30
|
|
Total pressure loss（Pa）
|
≤200
|
|
Air tightness（kPa）
|
45
|
|
Rated cyclic volume of a gas volume meter（dm3）
|
1.2
|
|
Accuracy class
|
1.5級(jí)
|
|
Error limit of reading（%）
|
qmin≤q＜qt ±3; qt≤q≤qmax ±1.5
|
|
Temp. under operating condition（℃）
|
-10～+40
|
|
Max. integrating value （m3）
|
99999.999
|
|
Center distance of pipe connector （mm）
|
130
|
|
Thread of pipe connector（mm）
|
M30×2
|
|
Weight （kg）
|
1.9
|

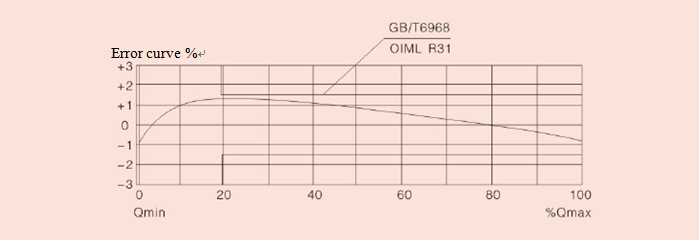

Error curve
□ It is suitable for installing at non-combustible structure and indoor place with good ventilation
□ It is prohibited to install at bedroom, bathroom and the place stored with dangerous goods and flammables, or somewhere similar to the aforesaid.
□ The installation of gas meter should satisfy the requirements of meter reading, repairing, maintenance and safety operation.
Ordering information
The type, specification, quantity and name of the ordered product shall be provided when ordering.
