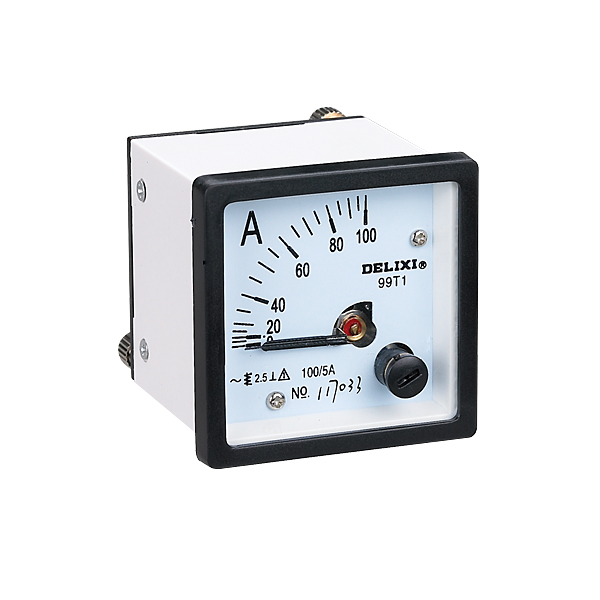

Type 99T1, 96, 72 Fixed Direct-action Analog-display Panel Meter

Category: Panel Meter

Print this page

Fav this page

E-mail us: yqyb@delixi.com

This product contains the following details

Product name	Input method	Design No.	Type	Range
96	C	1	A	*
99：99 96：96 72：72	C: DC L: AC T: AC(Electro-magnetic)_	1:1	A: Ammeter V: Voltage Meter W: Active Power Meter VAR: Reactive Power Meter HZ: Power Meter COS: Power Factor Meter	: A (V, Hz, W, var, COSφ) Refer to Range Parameter Table

Input Method	Type
DC	Ammeter, Voltmeter
AC (Electro-magnetic )	Ammeter, Voltmeter
AC	Active Power Meter, Reactive Power Meter, Frequency Meter, Power Factor Meter, voltmeter

Range Parameter Table

Product type	Type	Range	Accuracy class
DC Ammeter	72C-A 96C-A	Direct Connection to 50μA～500μA	Class 1.5
		Direct Connection to 1mA～500mA
		Direct Connection to 1A～20A
		Connection via external shunt to 5A～10kA
DC Voltmeter	72C-V 96C-V	Direct Connection to 3V～600V
		Connection via external resistance to 750V～1.5kV
AC Ammeter	72T-A 99T1-A 96T-A	Direct Connection to 1A～5A
		Direct Connection to 0.5A～20A	Class 2.5
		Direct Connection to 10A～100A
		Connect to 5A/5A～10kA/5A via 5A Secondary CT	Class 1.5
AC Voltmeter	72T-V 72L-V 99T1-V 96T-V 96L-V	Direct Connection to 30V～600V	Class 1.5 Class 2.5
		Connect to 380V/100V～380kV/100V via 100V Secondary VT
Frequency Meter	72L-Hz 96L-Hz	45Hz～55Hz 55Hz～65Hz 45Hz～65Hz	Class 1.0
		100V 220V 380V

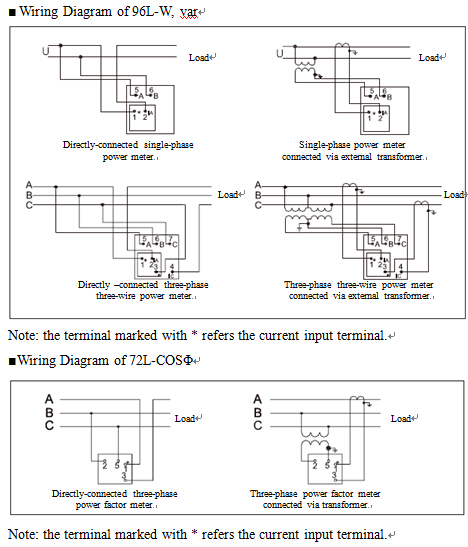

Active Power Meter Reactive Power Meter	72L-W 96L-W	Direct Connection to 100V 220V 380V	Class 2.5
		Connect to 380V/100V～380kV/100V via 100V Secondary VT
	72L-var 96L-var	Direct Connection 5A
		Connect to 5A/5A～10kA/5A via 5A Secondary CT

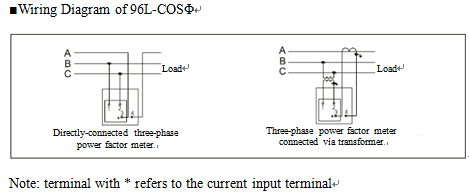

Three-phase Power Factor Meter	72L-COSφ 96L-COSφ	0.5 (lead) ～1～0.5 (lag)
		100V/5A 220V/5A 380V/5A

Notes
1: All of the 72T-A & 96T-A AC ammeters are 2 times current overloaded ones.
2: For AC ammeters, the current range of directly-connected Type 99 is 0.5A～20A and 1A～5A and 10A～100A for Type 72 and Type 96 respectively.
3: The AC ammeters of 0.5A～20A can be used for Type 99T1-A, with an accuracy of Class 2.5; Type 99T1-V AC voltmeter has an accuracy of Class 2.5 (Class 1.5 for Type 72 and Type 92 voltmeters)

Order Information:
The ordering code for Type 99 pointer panel meter (AC input, ammeter) is 99T1A*.

About Us | Products | Contact Us

Group Website

DELIXI Holding Group DELIXI Electric Shanghai DELIXI DELIXI Electrotechnical DELIXI Explosion-proof Zhejiang Sheng Enterprise Energy DELIXI Inverter

International Standard	IEC 51-1~9
National Standard	GB/T 7676.1~9
Industrial Standard	JB/T 9281, JB/T 9282, JB/T 9284, JB/T 9286, JB/T 9287
Voltage Withstanding Test	Frequency 50Hz, Voltage 2000V, Duration 1min
Impact Withstanding Test	Max. Acceleration 147m/s2
Responding time	≤4S
Pointer Deviation Angle	90°
