Type P□2222□-6X1 Mounted Digital-display Panel Meter
Category: Panel Meter
This product contains the following details
Product name | Input method | Outline dimension | Code | Range |
PA | L | 6 | X1 | * |
PA:PA2222 Ammeter |
L: AC C: DC |

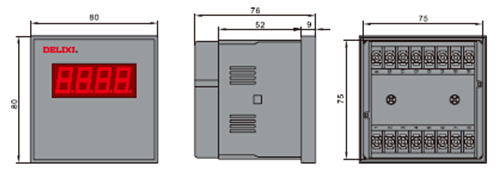

6:80×80(mm) | X1:Digital-display meter |
*: *A (V, Hz) Refer to Range Parameter Table |
PZ:PZ2222 Voltmeter | ||||
PP:PP2222 Frequency Meter |
Input method | Type |
DC | Ammeter, voltmeter |
AC | Ammeter, voltmeter, Frequency Meter |
Range Parameter Table
Product type | Type | Range |
DC ammeter |
PA2222C-6X1 |
Directly connect to 50μA~500μA |
Directly connect to 1mA~500mA | ||
Directly connect to 1A~5A | ||
Connect to 5A~10k via external shunt | ||
DC voltmeter |
PZ2222C-6X1 |
Directly connect to 3V~600V |
Connect to 750V~1.5kV via external resistant | ||
AC ammeter |
PA2222L-6X1 |
Directly connect to 0.1A~5A |
Connect to 5A/5A~10kA/5A via 5A Secondary CT | ||
AC voltmeter |
PZ2222L-6X1 |
Directly connect to 3V~600V |
Connect to 380V/100V~380kV/100V via 100V Secondary VT | ||
Frequency Meter |
PP2222L-6X1 |
45Hz~55Hz 55Hz~65Hz 45Hz~65Hz |
100V 220V 380V |
Order Information:
The ordering code for digital panel meter (AC input, ammeter, dimension: 80x80) is PAL6X1*.
n Easy to read, LED display of long lifespan.
n High accuracy and good full range linearity.
n Stable and reliable performance.
Technical Parameters | Indicators | ||
Input | Network | Single-phase | |
Voltage | Overloaded | Continuous voltage: 1.2 x Un; transient voltage: 1.5 x Un | |
Current | Overloaded | Constant: 1.2 In Transient: 1.5 In | |
Frequency | 45Hz~55Hz | ||
Output | Display Methods | 3 1/2-digit LED display | |
Accuracy | Voltage, Current, Frequency | ± (0.5%RNG+1 figure) RNG: full range value | |
Power | Range | AC220V±10% | |
Power Consumption | <3.5W | ||
Safety |
Voltage withstanding |
Input and auxiliary power supply | >2kV 50Hz/ 1min |
Insulation Resistance | Resistance of auxiliary power supply & input corresponding to the case >100MΩ |

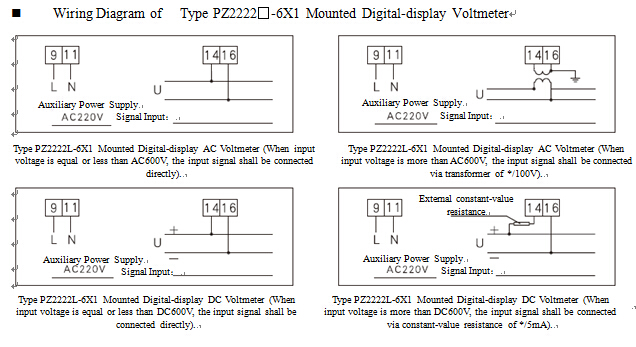

Wiring Diagram
n Terminals
