This product contains the following details
| Product name | Voltage | Accuracy class | Specification | Type of chip | Function Option |
|
DDS606
|
M | 1 | 6M4 | A | H |
|
M:220V |
1: Class 1 |
6M4：1.5（6）A |
A: Imported chip |
H: Connect via VT/CT
|
| Name | Type | Reference Voltage (V) | Accuracy class | Type of chip |
Function Option |
| Single-phase electronic energy meter | DDS606 | 220V | 1、 2 |
A: Imported chip C: Domestic chip |
1.5(6), 1.5(9), 1(10), 1.5(15), 2.5(10), 2.5(15), 5(20), 5(30), 5(40), 5(50), 10(40), 10(50), 5(60), 10(60), 15(60), 10(80), 20(80), 15(90), 10(100), 20(100), 30(100) |
Note: 1) "M" in the specification code represents multiple of current.
2) "H" in the specification code represents connection via VT/CT and rated secondary current is 5A.
Ordering Information:
The Ordering code for a single-phase electronic energy meter connected via VT/CT (220V, Class 1, 1.5 (6)A & imported chip) is DDS606M16M4AH.
| Certificate | ZZ No. 00000321 |
| National Standard | GB/T 17215.321 |
| International Standard | IEC 62053-21 |
| Current Specifications A | 1.5(6), 1.5(9), 1(10), 1.5(15), 2.5(10), 2.5(15), 5(20), 5(30), 5(40), 5(50), 10(40), 10(50), 5(60), 10(60), 15(60), 10(80), 20(80), 15(90), 10(100), 20(100), 30(100) |
| Reference Voltage V |
220 |
| Accuracy class (Class) |
1, 2 |
| Power Consumption | Power Consumption of Voltage Circuit≤2W/10VA, Power Consumption of Current Circuit≤4VA |
| Dual-direction energy metering | Can measure accurately forward and backward power. The two direction energy is metered as one direction accumulatedly. |
| Extended Functions | Optional functions including LCD Display, Infrared Communication and 485 Communication are available. |
| Project Needs | The user can make a requirement for more functions if necessary when placing an order. |
| Product Name | Current Specifications (A) |
Outline Dimensions Length×Width×Height (mm) |
Installation Dimensions Length×Width (mm) | Case Material |

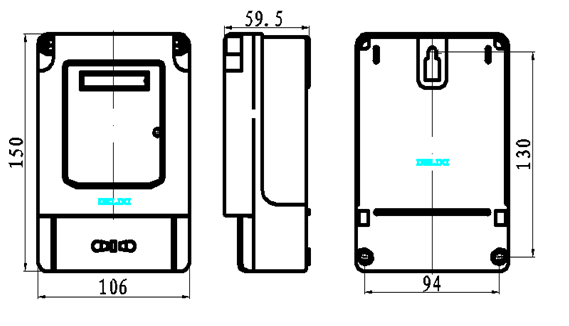

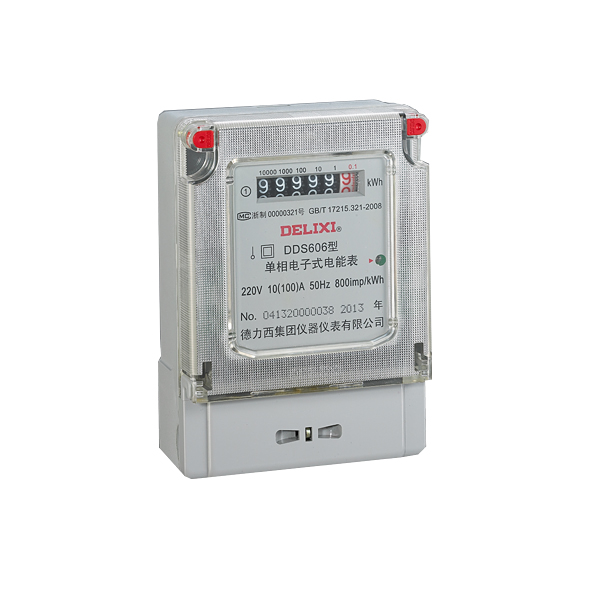

| DDS606 | 1.5(6), 1.5(9), 1(10), 1.5(15), 2.5(10), 2.5(15), 5(20), 5(30), 5(40), 5(50), 10(40), 10(50), 5(60), 10(60), 15(60), 10(80), 20(80), 15(90), 10(100), 20(100), 30(100) | 150×106×59.5 register display | 130×94 | PC+ABS(non-flammable) |

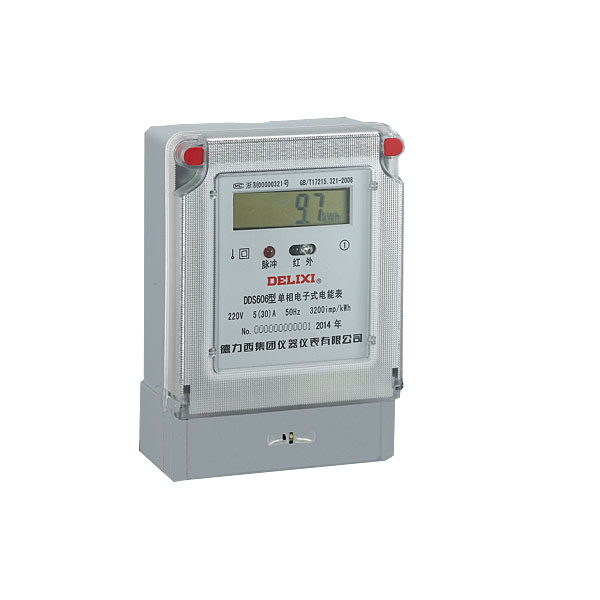

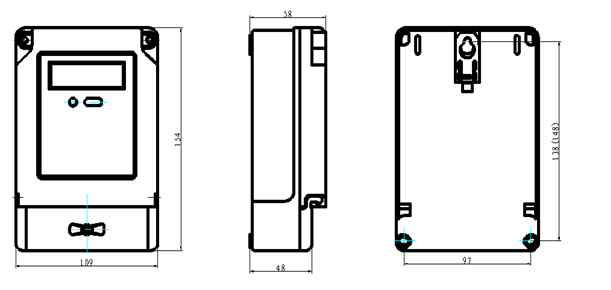

| 154×109×58 LCD Infrared 485 meter | 138(148)×97 | PC+ABS(non-flammable) |

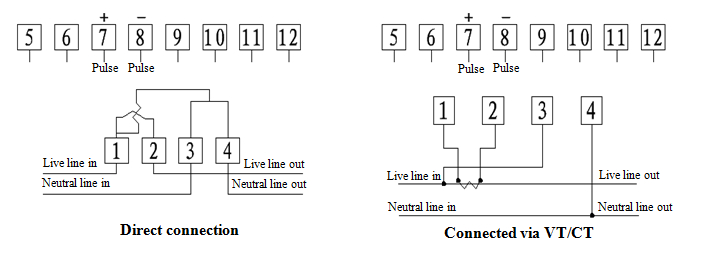

Wiring Diagram of Register display
Wiring Diagram of LCD Infrared 485 meter
