Product Name
|
Voltage
|
Accuracy class
|
Specifications
|
Function Option
|
|
DDSU6606
|
M
|
1
|
10M4
|
|
|
M:220V
|
1: Class 1
2: Class 2
|
10M4:2.5(10)A
...
80M4:20(80)A
|
CDI485: LCD, Infrared ,485
|
|
Name
|
Type
|
Reference Voltage (V)
|
Accuracy class
|
Basic Current (Max. Current) (A)
|
|

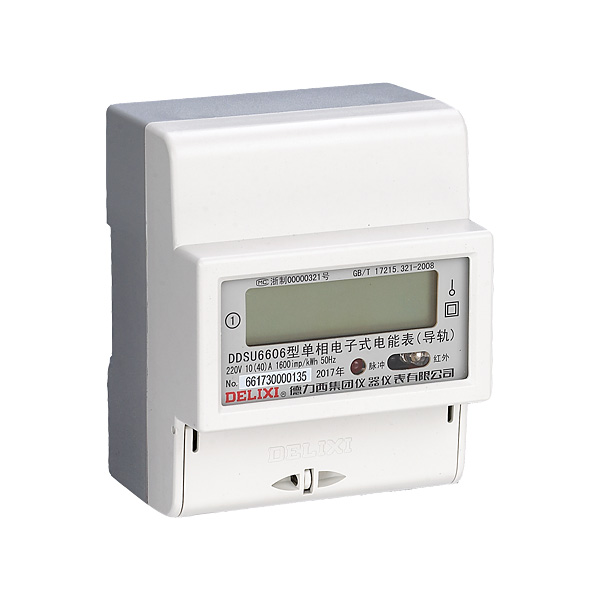

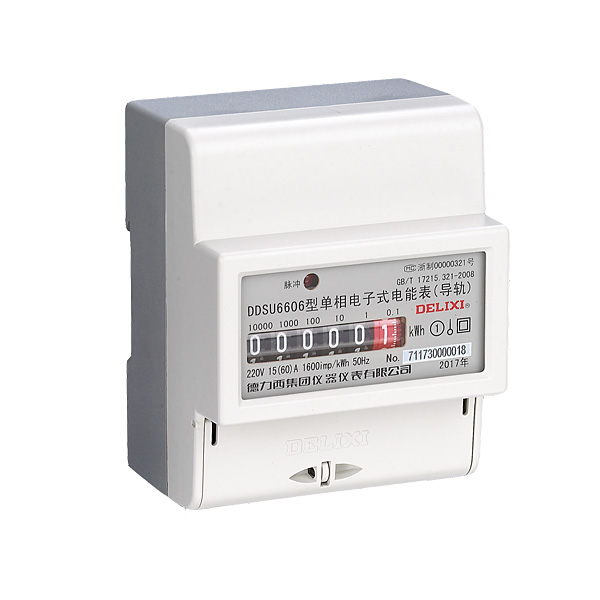

DDSU606 single phase electronic energy meter(DIN rail)
|
DDSU6606
|
220
|
1
|
2.5(10), 5(20), 10(40), 15(60), 20(80)
|
Note: 1) "M" in the specification code represents multiple of current.
Ordering information
The Ordering code for a single electronic energy meter (DIN rail, LCD, infrared & 485),220V, Class 1, 10(40)A, is DDSU6606M140M4CDI485.
Small size and light weight, modular structure,35mm standard DIN rail installation,easy to us
LCD display, easy to read,
wide measurement range,high overload ability, high accuracy, good reliablility when working
infrared and RS485 communication function
|
Certificate
|
 ZZ No. 00000321
|
|
International Standard
|
IEC 62053-21
|
|
National Standard
|
GB/T 17215.321
|
|
Current Specifications A
|
2.5(10), 5(20), 10(40), 15(60), 20(80)
|
|
Reference Voltage V
|
220V
|
|
Accuracy class (Class)
|
1
|
|
Power Consumption
|
Power Consumption of Voltage Circuit≤2W/10VA, Power Consumption of Current Circuit≤1VA
|
|
Dual-direction energy metering
|
Can measure accurately forward and backward power. The two direction energy is metered as one direction accumulatedly.
|
|
Project Needs
|
The user can make a requirement for more functions if necessary when placing an order.
|
